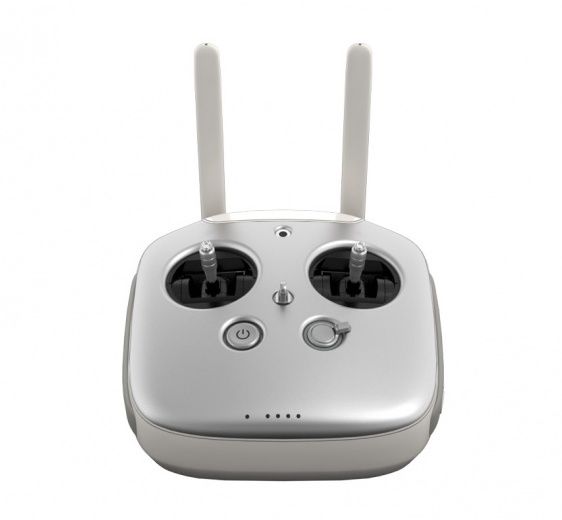

DJI Inspire 1 Remote Controller 遙控器
- Easy, intuitive control
- Integrated DJI Lightbridge
- Convenient controls
Overview
Absolute Control
The Inspire 1’s remote controller combines DJI’s most sophisticated control technology with added dual operator support. Never before has such an advanced controller been created specifically for flight and camera control.
DJI Lightbridge
For the first time ever, the DJI Lightbridge HD video downlink has been integrated into a remote. This gives you a live view of what your camera sees when connected to a screen or mobile device and increases your maximum control range to 3.1mi(5Km).
Dedicated Buttons
Easily control both flight and camera functions right on the remote. Dedicated buttons for photo and video capture, dials for gimbal tilt and camera settings, and one-press Return to Home functionality are all built right in.
Dual Operator Control
When flying with a friend, the Master controller pilots the aircraft while the Slave controller moves the gimbal and camera’s direction. Both remotes receive live data and video straight from the Inspire 1, but only the Master controller sends commands to the aircraft. The Slave controller must be linked to the Master via secure password to control the gimbal.
Flight Software
All of DJI’s flight system knowledge has been put into the remote’s software, giving you smooth, stable flight. Finely tuned control algorithms make you feel like you’re riding in the cockpit, with a level of control no other multirotor on the market can match.
Runtime
The built-in 6000 mAh LiPo 2S rechargeable battery means you can make multiple flights without thinking about the remote’s power. The remaining battery life is shown live right on the remote, and built-in alerts warn you when power is running low.
Specifications
Model
GL658A
Operating Frequency
922.7-927.7 MHz (Japan Only)
5.725-5.825 GHz
2.400-2.483 GHz
Max Transmitting Distance(unobstructed, free of interference)
Up to 5 km or 3.1 miles when FCC compliant
Up to 3.5 km or 2.1 miles when CE compliant
Up to 2 km or 1.2 miles when MIC compliant
EIRP
10dBm@900m
13dBm@5.8G
20dBm@2.4G
Video Output Ports
USB, mini-HDMI
Power Supply
Built-in battery
Charging
DJI charger
Dual User Capability
Host-and-Slave connection
Mobile Device Holder
Tablet or Smart Phone
Max Mobile Device Width
170mm
Output Power
9 W
Operating Temperature
14° to 104° F (-10° to 40° C)
Storage Temperature
Less than 3 months: -4° to 113° F (-20° to 45° C) More than 3 months: 72° to 82° F (22° to 28° C)
Charging Temperature
32° to 104° F (0° to 40° C)
Battery
6000mAh 2S LiPo
