Rode PreviousNext NT6 Compact 1/2" Condenser
Currency
- Premium small-diaphragm condenser microphone with remote capsule
- 1/2-inch gold sputtered
- Two-stage pad, two-stage high-pass filter
- Ideal for difficult mounting applications
Overview

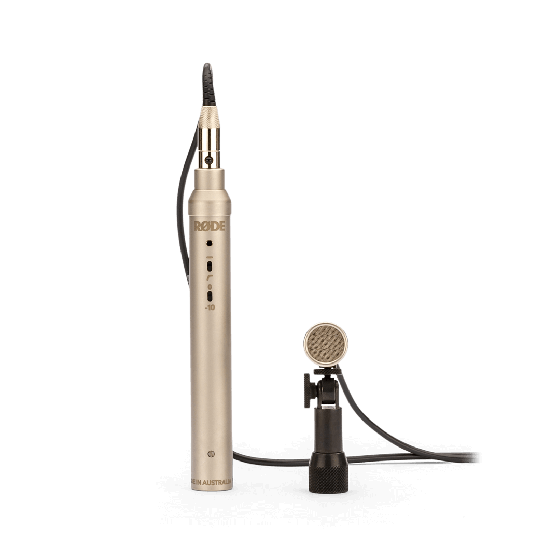

The NT6 is a small-diaphragm cardioid condenser microphone with a remote capsule, specifically designed for difficult mounting applications where the highest quality audio is required.
The microphone is split into two modular components that are connected via a custom 3-metre shielded, Kevlar-reinforced cable. The head features a 1/2-inch gold-sputtered condenser capsule with a multi-position mounting ring that provides 180 degrees of vertical rotation. The body houses the microphone preamp, which features a high-pass filter (80Hz) and a -10dB pad.
Specifications
Acoustic Principle
Pressure Gradient
Active Electronics
JFET impedance converter with bipolar output buffer
Capsule
0.50"
Polar Pattern
Cardioid
Address Type
End
Frequency Range
40Hz - 20kHz
Output Impedance
200Ω
Maximum SPL
135dB SPL
Maximum Output Level
6.0mV (@ 1kHz, 1% THD into 1KΩ load)
Sensitivity
-37.0dB re 1 Volt/Pascal (16.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise
19dBA
Power Requirements
P24 and P48
Output Connection
XLR
Dimensions (mm)
189 (H) x 64 (W) x 20 (D)
| UPC | 698813000685 |
|---|
