Sekonic C-7000 Spectrometer Color Meter

Currency

In stock

SKU

C-7000

Be the first to review this product

HK$17,800.00

Notify me when the price drops

Measures LED, HMI, Fluorescent, Tungsten, Natural Light and Flash, from 380 to 780nm
Wide measurement range of Color Temperature (1,563 to 100,000K) and illuminance (1 to 200,000lx in ambient light, 20 to 20,500lx・s in flash light)
Conforms to Class A of JIS C 1609-1: 2006, and DIN 5032 Part 7 Class C as Illuminance meter class
Text Mode with more measurement for Industrial use such as Tcp, ⊿uv, XYZ, λd, λp, Pe
Spectrum Mode / Spectrum Comparison Mode
PPFD (Photosynthetic Photon Flux Density) Measurement
Expanded Color Rendering Properties (CRI/CRI Comparison, SSI, TLCI, TLMF, TM-30-18) *
CIE1931 (CIE1964) Chromaticity Coodinates and CIE1931 (CIE1964) Comparison Mode
CIE1976 Chromaticity Coodinates and CIE1976 Comparison Mode
2°or 10° field of view is selectable
Single / Continuous measurement *
Exposure time (Shutter speed) is selectable
Up to 999 measurements can be stored in memory
User-friendly design: 270 degrees swivel head, dark calibration without a cap, large 4.3” color touch panel LCD and Customize function
C-7000 Utility offers easy setting, updating firmware of the meter, and outputting the various graphics and csv data
1nm / 5nm increment spectrum output in CSV format by Utility
SDK (Software Development Kit) for remote control is available

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Overview

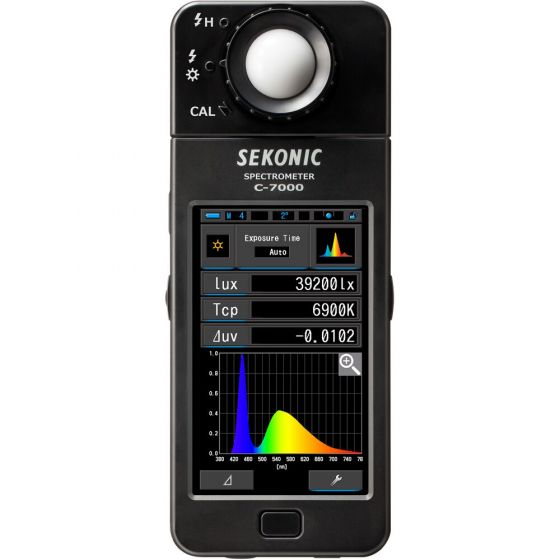

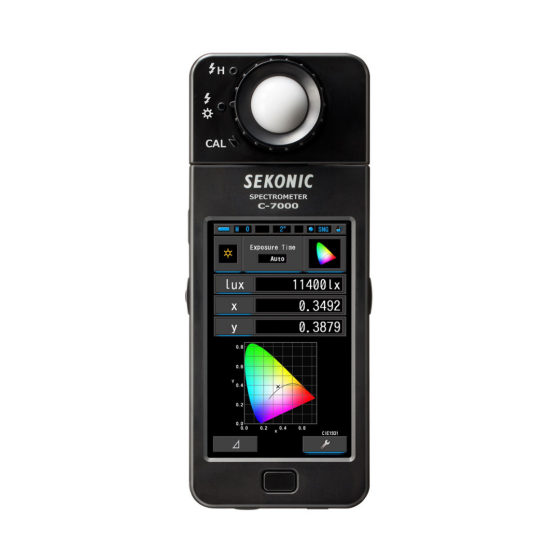

The C-7000 Spectrometer is a portable handheld spectrometer, designed especially for industrial use. Utilizing Sekonic’s CMOS linear image sensor design and large touch-screen color display, the C-7000 can measure and accurately describe LED, HMI, fluorescent, as well as natural light and electronic flash. The C-7000’s Utility software displays memorized data in several ways and outputs spectral data in 1nm/5nm (nanometer) increments in CSV format. The C-7000 is an important measuring tool for quality control in lamp manufacturing, medical facilities, educational / office safety and health standards, agricultural lighting / design and many more industrial uses.

WHAT'S IN THE BOX

Sekonic C-7000 SPECTROMASTER Spectrometer
Startup Guide
Strap
Soft Case
USB Mini-B cable
CD-ROM
Safety Precaution

Specifications

Sensor
CMOS linear image sensor

Measuring System
Spectro Meter
Incident light: Swivel head

Measuring Modes (Ambient Light)
Ambient light

Measuring Modes (Flash light)
Cordless, Cord-in (PC)

Measuring Range at ISO100 (Ambient Incident Light)
1 lx to 200,000 lx *
0.1 fc to 18,600 fc **

*Class A of JIS C 1609-1: 2006 “Illuminance meters Part 1: General measuring instruments”

**Models sold in Japan do not display "fc (fc*s)" due to legal restrictions.

Measuring Range (Flash Incident Light)
20 lx・s to 20,500lx・s 1.86 fc・s to 1,900 fc・s

Spectral Wavelength Range
380nm to 780nm

Color Measuring Mode (Display Mode)
Text mode, Spectrum mode, Spectrum Comparison mode, CRI mode, CRI Comparison mode,
TM-30-18 mode, SSI mode, TLCI/TLMF mode, CIE1931 (CIE1964) mode,
CIE1931 (CIE1964) Comparison mode, CIE1976 mode, CIE1976 Comparison mode

Color Measuring Range (Ambient Light)
1,563 to 100,000K

Color Measuring Range (Flash Light)
2,500 to 100,000K

Color Measuring Units (Color Parameters)
Correlated Color Temperature (Tcp), Deviation (⊿uv ),
Tristimulus value (XYZ / X10Y10Z10),
CIE1931/1964 (xyz / x10y10z10), CIE1976 (u’v’ / u’10v’10 )

Color Measuring Units (Color Rendering Properties)
CRI (Ra /R1 to R15), TM-30-18 (Rf, Rg), SSI(t, d, 1, 2) TLCI, TLMF

Color Measuring Units (Industrial)
Dominant wavelength (Λd), Excitation purity (Pe), Peak wavelength (Λp), PPFD

Color Measuring Units (Photo/Cinematography)
Dominant wavelength (Λd), Excitation purity (Pe), Peak wavelength (Λp), PPFD

Shutter Speeds Range (Ambient Light)
Auto - Max.: 15 sec., Min.: 0.5 sec.
Manual - 0.1s, 1sec.

Shutter Speeds Range (Flash Light)
1 to 1/500 sec. (in 1 step)

Memory
Yes (999 times)

Contrast/Comparison Function
Yes

Custom Settings
Yes (5 custom settings)

Measuring Data Output
Memorized value with graphic
Spectral irradiance from 380nm to 780nm in 1 and 5 nm increments
