Overview

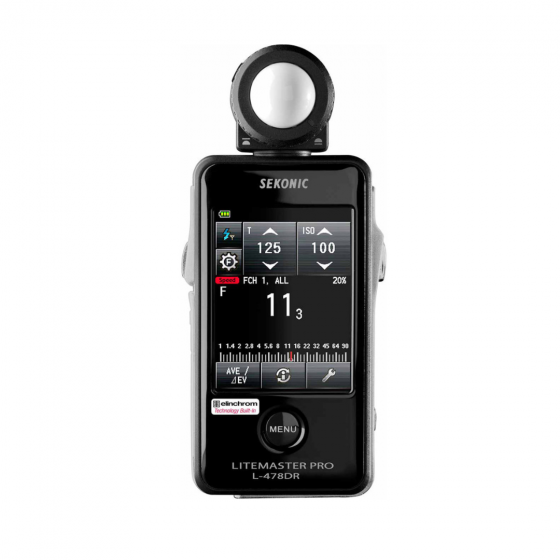

Sekonic's LiteMaster Pro L-478 Series meters are the world's first touch-screen-operated light meters. They have an array of unique, must-have features for both still and motion story tellers. Their compact size is both instantly familiar and comfortable to use. A large LCD (2.7") displays ambient, flash, cine and a host of other information in a clear and understandable way. Settings are made by simply touching or sliding a finger over the screen.

The L-478 meters can be quickly calibrated to your camera using Sekonic's Data Transfer software and either Sekonic or X-Rite Brand targets or by manually inputting data to the DTS program or on the meter itself.

Keeping pace with wireless advancements, the L-478DR-EL comes complete with exclusive Elinchrom Skyport technology which combines light measurement and flash power control providing amazing control in your hand.

The L-478DR-EL has a radio module and antenna built into the meter. The system transmits at 2.4GHz and uses signal protocols that are unique to Elinchrom’s Skyport wireless triggering/control system.

The L-478 series meters offer the following languages in the interface: Japanese, English and Chinese. Depending on the country where the meter is purchased, the language is fixed and cannot be changed by the user.

NOTE: * This model may not be available due to the restriction of regulation in each country. * Please be sure to check the radio frequency and language before purchase.



WHAT'S IN THE BOX

• Sekonic L-478DR-EL LiteMaster PRO
• Startup Guide
• Strap
• Soft Case
• Anti-glare film
• Safety Precaution

Specifications

---

Sensor
SPD

---

Measuring System
Exposure Meter
Incident light: Swivel head, retractable lumisphere
Reflected light: Removable, with Optional 5 deg. VF

---

Measuring Modes (Ambient Light)
T priority, F priority, TF priority, HD_CINE (T priority), CINE (f/s priority), Lux/FC, Cd/m2/FL

---

Measuring Modes (Flash light)
Cordless, Cord-in (PC), Radio triggering (Built-in, Elinchrom EL-Skyport), Multiple cumulative flash

---

Measuring Range at ISO100 (Ambient Incident Light)
EV-2 to EV22.9
0.63 lx to 2,000,000 lx
0.1 fc to 180,000 fc

---

Measuring Range ISO100 (Ambient Reflected Light)
EV3 to EV22.9
1.0 cd/m2 to 980,000 cd/m2
0.29 fl to 290,000 fl

---

Measuring Range (Flash Incident Light)
F1.0 to F161.2(=128.9)

---

Measuring Range (Flash Reflected Light)
F2.8 to F161.2(=128.9)

---

ISO Range
ISO 3 to ISO 409,600 + ISO 850

---

Aperture Range (Ambient Light)
F0.5 to F161.2(=128.9) in 1, 1/2, 1/3 step
(Analog Scale: F1.0 to F90 in 1/3 step)

---

Aperture Range (Flash Light)
F0.5 to F161.2(=128.9) in 1, 1/2, 1/3 step
(Analog Scale: F1.0 to F90 in 1/3 step)

---

Shutter Speeds Range (Ambient Light)
30m to 1/64,000s in 1, 1/2, 1/3 step
(Analog scale: 4s to 1/2,000s in 1/3 step)

---

Shutter Speeds Range (Flash Light)
30m to 1/1,000s in 1, 1/2, 1/3 step

---

Frame Rate Range (Ambient Light)
1 f/s to 1,000 f/s plus other 20 settings (customized from 0.001 f/s to 9,999.999 f/s)

---

Shutter Angles Range (Ambient Light)
1 deg. to 358 deg. plus other 20 settings (customized from 0.001 deg. to 360 deg.)

---

EV Range (Ambient Light)
EV-27.9 to EV55.8

---

Memory
Yes (9 times)

---

Average
Yes

---

Contrast/Comparison Function
Yes (+/-9.9EV in 1/10 step)

---

Radio System
Transmitter built-in - Elinchrom EL-Skyport (2.4GHz)

---

Flash vs Ambient Analyzing
Yes (in 10% step)

---

Filter Compensation
Yes (-12EV to 12EV, preset 30 type)

---

Exposure Compensation
Yes (-9.9EV to +9.9EV)

---

Calibration Compensation
Yes (-1.0EV to +1.0EV)

---

Custom Settings
Yes (13 custom settings)

---

Physical

---

Operating Temperature
-10 deg. C to 50 deg. C

---

Storage Temperature
-20 deg. C to 60 deg. C

---

Power Source
2 x AAA battery

---

LCD
2.7" color dot matrix touch panel LCD

---

LCD Backlight
Yes

---

Weight
0.14kg

---

Height
2.6cm

---

Length
14cm

---

Width
5.7cm

---

Model Number
L-478DR-EL
