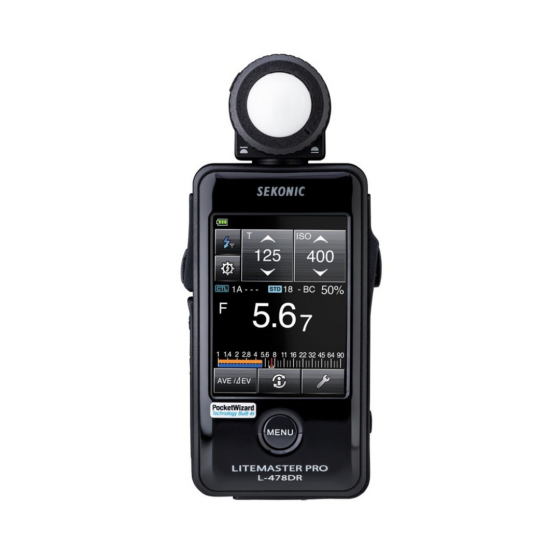

Sekonic L-478DR LiteMaster Pro
- Flash Power Control & Radio Triggering
- Incident Metering for Ambient & Flash
- Range: -2 EV to 22.9 EV at ISO 100
- Cine Setting: Frame Rate & Shutter Angle
- 2.7" Color Touchscreen LCD
- Flash Analyzing Function
- Filtration Compensation Mode
- Illuminance/Luminance Measurements
- Contrast Function & Memory Mode
- Custom Exposure Profiles & Calibration
Overview
Sekonic's LiteMaster Pro L-478 Series meters are the world's first touch-screen-operated light meters. They have an array of unique, must-have features for both still and motion story tellers. Their compact size is both instantly familiar and comfortable to use. A large LCD (2.7") displays ambient, flash, cine and a host of other information in a clear and understandable way. Settings are made by simply touching or sliding a finger over the screen.
The L-478 meters can be quickly calibrated to your camera using Sekonic's Data Transfer software and either Sekonic or X-Rite Brand targets or by manually inputting data to the DTS program or on the meter itself.
Keeping pace with wireless advancements, the L-478DR comes complete with exclusive PocketWizard ControlTL technology which combines light measurement and flash power control providing amazing control in your hand.
The L-478DR has a radio module and antenna built into the meter. These cannot be changed after purchase. For example, the radio frequency is either FCC & IC (344MHz) or CE (433MHz).
The L-478 series offer the following languages in the interface: Japanese, English and Chinese. Depending on the country where the meter is purchased, the language is fixed and cannot be changed by the user.
NOTE: * This model may not be available due to the restriction of regulation in each country. Please be sure to check the radio frequency and language before purchase.
WHAT'S IN THE BOX
- Sekonic L-478DR LiteMaster PRO
- Startup Guide
- Strap
- Soft Case
- Anti-glare film
- Safety Precaution
Specifications
Type
Digital exposure meter for ambient and flash light
Receptor Head
Rotating Domed Head 90° to the right, 180° to the left, Retractable for Contrast Reading
Light Receiving Method
Incident light and reflected light
Receptor Incident Light
Convertible to flat diffuser (Lumisphere in down position)
Receptor Reflected Light
5° Viewfinder (Separate Accessory)
Light Receptor Element
2-Silicon photo diodes (incident and reflected)
Measuring Modes Ambient Light
HD Cine - Shutter priority metering, FPS (Frame Rate Priority) metering, Lux/FC
Cine - FPS (Frame Rate Priority) metering, Shutter Angle setting, Lux/FC
Simple brightness measurement (foot-lambert, cd/m2
Simple illumination measurement (lux, foot-candle)
Aperture priority metering
EV metering
Shutter priority metering
Measuring Modes Flash
Measurement using the included wireless flash radio triggering system (cumulative and non-cumulative)
Without synchro cord (cumulative and non-cumulative)
With synchro cord (cumulative and non-cumulative)
Measuring Range (ISO 100) Ambient Light
Incident light EV-2 to EV 22.9
Reflected light EV3 to EV 19.9 (requires accessory sold separately)
Measuring Range (ISO 100) Flash
Incident Light f/1.0 to f/128.9
Reflected Light f/2.8 to f/128.9 (requires accessory sold separately)
Measuring Range Illuminance
0.63 to 2000000lux - 0.10 to 180000FC
Measuring Range Brightness
1 to 980000 cd/m2 - 0.29 to 290000 foot lamberts
Display Range Film Speed
ISO 3 to 409600 (in 1/3 steps)
Display Range Shutter Speeds Ambient
30 min to 1/64,000 sec. (in 1, 1/2, 1/3 steps) plus 1/200, 1/400
Display Range Shutter Speeds Flash
30 min to 1/1000 sec. (in 1, 1/2, 1/3 steps) plus 1/75, 1/80, 1/90, 1/100, 1/200, 1/400
Display Range Aperture
f/0.5 to f/161.2 (in 1, 1/2, 1/3 steps)
General
Model Number
L-478DR
Battery Power
2 x AAA
UPC | 4962294011475 |
---|
