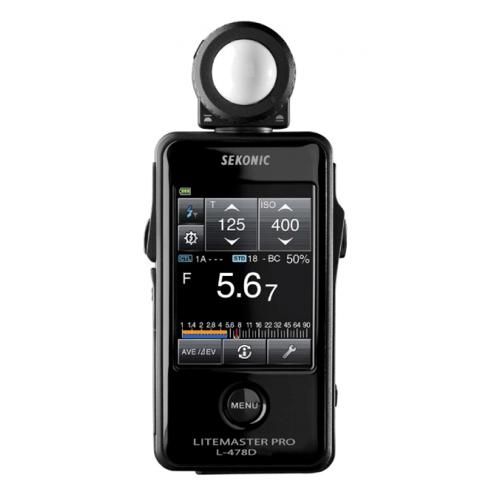

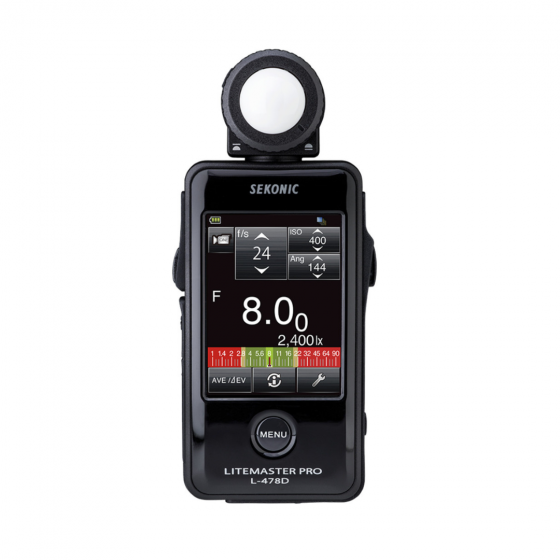

Sekonic L-478D LiteMaster Pro Light Meter
- Incident Metering for Ambient & Flash
- Reflected 5 degree spot metering with optional viewfinder attachment
- Cine Setting: Frame Rate & Shutter Angle
- 2.7" Color Touchscreen LCD
- Flash Analyzing Function
- Filtration Compensation Mode
- Illuminance/Luminance Measurements
- Contrast Function & Memory Mode
- Custom Exposure Profiles & Calibration
Overview
Equipped with a large and intuitive 2.7" color touchscreen LCD, the LiteMaster Pro L-478 Series Light Meter from Sekonic will make incident metering for ambient and flash light super simple. The major ability of this system enables complete control of the flash's power in 0.1-step increments.
Notable for the L-478 series light meter is the large color touchscreen, which allows for fast control over settings for both ambient and flash metering. The meter is quite capable as well, able to function within a range of -2 to 22.9 EV at ISO 100. Additionally, for the current crop of hybrid shooters this model expands on its standard stills functions with two distinct video modes: Cine and HD Cine. These settings give access to frame rate selection from 1-1,000 fps as well as shutter angle settings from 1-358° as well as ISO 850 for Canon cinema cameras.
Guaranteeing the best possible performance is a suite of functions and features that will ensure users have the best tools available to them. Among these is a flash analyzing function that uses ambient and flash simultaneously to allow for shooters to dial in their preferred mix. Also, using the included Data Transfer Software users will be able to do Exposure Profiling for their camera by using the optional 5° viewfinder, showing dynamic range limits and knowing that you will have an accurate exposure. Alongside this is a Filtration Compensation Mode that allows for the meter to account for filter factor, which can now be done at up to 12 EV for landscape shooters using high-density ND filters. Other features include a contrast function for comparing brightness, a memory mode for 8 readings, and illuminance or luminance measurement.
WHAT'S IN THE BOX
- Sekonic L-478D LiteMaster PRO Light Meter
- Startup Guide
- Strap
- Soft Case
- Anti-glare film
- Safety Precaution
Specifications
Sensor
SPD
Measuring System
Exposure Meter
Incident light: Swivel head, retractable lumisphere
Reflected light: Removable, with Optional 5 deg. VF
Measuring Range and Modes
Measuring Modes (Ambient Light)
T priority, F priority, TF priority, HD_CINE (T priority), CINE (f/s priority), Lux/FC, Cd/m2/FL
Measuring Modes (Flash Light)
Cordless, Cord-in (PC), Multiple cumulative flash
Measuring Range at ISO100 (Ambient Incident Light)
EV-2 to EV22.9
0.63 lx to 2,000,000 lx
0.1 fc to 180,000 fc
Measuring Range ISO100 (Ambient Reflected Light)<
EV3 to EV22.9
1.0 cd/m2 to 980,000 cd/m2
0.29 fl to 290,000 fl
Measuring Range (Flash Incident Light)<
F1.0 to F161.2(=128.9)
Measuring Range (Flash Reflected Light)<
F2.8 to F161.2(=128.9)
ISO Range
ISO 3 to ISO 409,600 + ISO 850
Aperture Range (Ambient Light)
F0.5 to F161.2(=128.9) in 1, 1/2, 1/3 step
(Analog Scale: F1.0 to F90 in 1/3 step)
Aperture Range (Flash Light)
F0.5 to F161.2(=128.9) in 1, 1/2, 1/3 step
(Analog Scale: F1.0 to F90 in 1/3 step)
Shutter Speeds Range (Ambient Light)
30m to 1/64,000s in 1, 1/2, 1/3 step
(Analog scale: 4s to 1/2,000s in 1/3 step)
Shutter Speeds Range (Flash Light)
30m to 1/1,000s in 1, 1/2, 1/3 step
Frame Rate Range (Ambient Light)
1 f/s to 1,000 f/s plus other 20 settings (customized from 0.001 f/s to 9,999.999 f/s)
Shutter Angles Range (Ambient Light)
1 deg. to 358 deg. plus other 20 settings (customized from 0.001 deg. to 360 deg.)
EV Range (Ambient Light)
EV-27.9 to EV55.8
Memory
Yes (9 times)
Average
Yes
Contrast/Comparison Function
Yes (+/-9.9EV in 1/10 step)
Flash vs Ambient Analyzing
Yes (in 10% step)
Filter Compensation
Yes (-12EV to 12EV, preset 30 type)
Exposure Compensation
Yes (-9.9EV to +9.9EV)
Calibration Compensation
Yes (-1.0EV to +1.0EV)
Custom Settings
Yes (13 custom settings)
Physical
Operating Temperature
-10 deg. C to 50 deg. C
Storage Temperature
-20 deg. C to 60 deg. C
Power Source
1.5V x 2 (AAA battery)
LCD
2.7" color dot matrix touch panel LCD
LCD Backlight
Yes
Weight
0.13kg
Height
2.6cm
Length
14cm
Width
5.7cm
UPC | 4962294011468 |
---|
