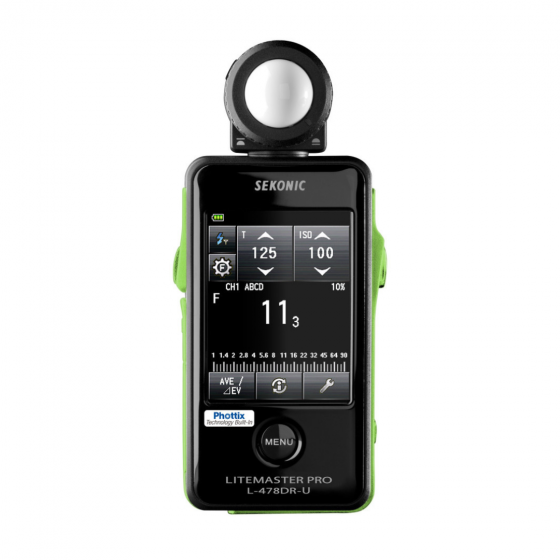

Sekonic LiteMaster Pro L-478DR-PX Series Light Meter for Phottix Strato II System
- Radio Triggering With Phottix Strato II
- Incident Metering for Ambient & Flash
- Reflected 5 degree spot metering with optional viewfinder attachment
- Cine Setting: Frame Rate & Shutter Angle
- 2.7" Color Touchscreen LCD
- Flash Analyzing Function
- Filtration Compensation Mode
- Illuminance/Luminance Measurements
- Contrast Function & Memory Mode
- Custom Exposure Profiles & Calibration
Overview
Sekonic's LiteMaster Pro L-478 Series meters are the world's first touch-screen-operated light meters. They have an array of unique, must-have features for both still and motion story tellers. Their compact size is both instantly familiar and comfortable to use. A large LCD (2.7") displays ambient, flash, cine and a host of other information in a clear and understandable way. Settings are made by simply touching or sliding a finger over the screen.
The L-478 meters can be quickly calibrated to your camera using Sekonic's Data Transfer software and either Sekonic or X-Rite Brand targets or by manually inputting data to the DTS program or on the meter itself.
Keeping pace with wireless advancements, the L-478DR-PX comes complete with exclusive Phottix wireless triggering technology which combines light measurement with triggering as selected Channels and Groups providing amazing control in your hand.
The L-478DR-PX has a radio module and antenna built into the meter. The system transmits at 2.4GHz and uses the Phottix Strato II signal protocol that can trigger channels (1-4) and groups (A,B,C,D) to fire any flash or Studio strobe connected to a Phottix Strato, Strato II, Ares II, or Atlas II receiver as well as a Phottix Mitros+ flash or an Indra 500/360TTL strobe set to Strato II receive function. When shooting, photographers can pick from various Phottix transmitters including the Strato II , Ares II , Odin or Odin II. The L-478 series meters offer the following languages in the interface: Japanese, English and Chinese. Depending on the country where the meter is purchased, the language is fixed and cannot be changed by the user.
NOTE: * This model may not be available due to the restriction of regulation in each country. * Please be sure to check the radio frequency and language before purchase.
WHAT'S IN THE BOX
- Sekonic L-478DR-PX LiteMaster PRO
- Startup Guide
- Strap
- Soft Case
- Anti-glare film
- Safety Precaution
Specifications
Sensor
SPD
Measuring System
Exposure Meter
Incident light: Swivel head, retractable lumisphere
Reflected light: Removable, with Optional 5 deg. VF
Measuring Modes (Ambient Light)
T priority, F priority, TF priority, HD_CINE (T priority), CINE (f/s priority), Lux/FC, Cd/m2/FL
Measuring Modes (Flash light)
Cordless, Cord-in (PC), Radio triggering (Built-in, Phottix), Multiple cumulative flash
Measuring Range at ISO100 (Ambient Incident Light)
EV-2 to EV22.9
0.63 lx to 2,000,000 lx
0.1 fc to 180,000 fc
Measuring Range ISO100 (Ambient Reflected Light)
EV3 to EV22.9
1.0 cd/m2 to 980,000 cd/m2
0.29 fl to 290,000 fl
Measuring Range (Flash Incident Light)
F1.0 to F161.2(=128.9)
Measuring Range (Flash Reflected Light)
F2.8 to F161.2(=128.9)
ISO Range
ISO 3 to ISO 409,600 + ISO 850
Aperture Range (Ambient Light)
F0.5 to F161.2(=128.9) in 1, 1/2, 1/3 step
(Analog Scale: F1.0 to F90 in 1/3 step)
Aperture Range (Flash Light)
F0.5 to F161.2(=128.9) in 1, 1/2, 1/3 step
(Analog Scale: F1.0 to F90 in 1/3 step)
Shutter Speeds Range (Ambient Light)
30m to 1/64,000s in 1, 1/2, 1/3 step
(Analog scale: 4s to 1/2,000s in 1/3 step)
Shutter Speeds Range (Flash Light)
30m to 1/1,000s in 1, 1/2, 1/3 step
Frame Rate Range (Ambient Light)
1 f/s to 1,000 f/s plus other 20 settings (customized from 0.001 f/s to 9,999.999 f/s)
Shutter Angles Range (Ambient Light)
1 deg. to 358 deg. plus other 20 settings (customized from 0.001 deg. to 360 deg.)
EV Range (Ambient Light)
EV-27.9 to EV55.8
Memory
Yes (9 times)
Average
Yes
Contrast/Comparison Function
Yes (+/-9.9EV in 1/10 step)
Radio System
Transmitter built-in - Phottix Strato II protocol (2.4GHz)
Flash vs Ambient Analyzing
Yes (in 10% step)
Filter Compensation
Yes (-12EV to 12EV, preset 30 type)
Exposure Compensation
Yes (-9.9EV to +9.9EV)
Calibration Compensation
Yes (-1.0EV to +1.0EV)
Custom Settings
Yes (13 custom settings)
Physical
Operating Temperature
-10 deg.C to 50 deg.C
Storage Temperature
-20 deg.C to 60 deg.C
Power Source
2 x AAA
LCD
2.7” color dot matrix touch panel LCD
LCD Backlight
Yes
Weight
0.14kg
Height
2.6cm
Length
14cm
Width
5.7cm
Model Number
L-478DR-PX
UPC | 4962294011796 |
---|
